OVERVIEW

  • 16-ch@2MP/ 8-ch@4MP Decoding Capacity†: Allows you to enjoy more channels, live view, and playback at the same time.
  • 1 HDMI and 1 VGA Interface: Supports independent video output.
  • H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • 320 Mbps Incoming and Outgoing Bandwidth: Ensures your NVR manages more cameras with high resolutions.
  • Mass Storage: Supports 4× SATA, up to 10 TB each.
  • 16-Channel Simultaneous Playback: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
  • Dual Ethernet Ports Design: Supports three network modes, including muti-address mode, network fault-tolerance and load balance.
  • Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
  • Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
  • Rack Mounting: Space-saving and easy installation.
  • ONVIF Ensures Compatibility: Easily adds IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

SPECIFICATIONS

VIDEO AND AUDIO
IP Video Input 32-Channel
Incoming Bandwidth 320 Mbps
Outgoing Bandwidth 320 Mbps
HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Video Output Mode HDMI/VGA Independent Output
Multi-View Display 1/4/6/8/9/16/25/32/36
DECODING
Audio Compression G.711A/G.711U/G.726
Decoding Format H.265+/H.265/ H.264+/H.264
Video Compression H.265+/H.265/ H.264+/H.264
Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Live View/Playback Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF
Synchronous Playback 16-Channel
Capability 16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP
(30 fps)
RECORD MANAGEMENT
Record Mode • Manual Recording
• Scheduling Recording
• Motion Detection Recording
Playback Mode • Instant Playback
• Regular Playback
• Tag Playback
• Event Playback
Backup Mode • Regular Backup
• Video Clip Backup
Playback Function • Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off
NETWORK
Protocol UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access Android, iOS
Incoming Bandwith 320 Mbps
Outgoing Bandwidth 320 Mbps
Web Browser Chrome (57+), Firefox (52+), Edge (91+)
Interoperability ONVIF, CGI

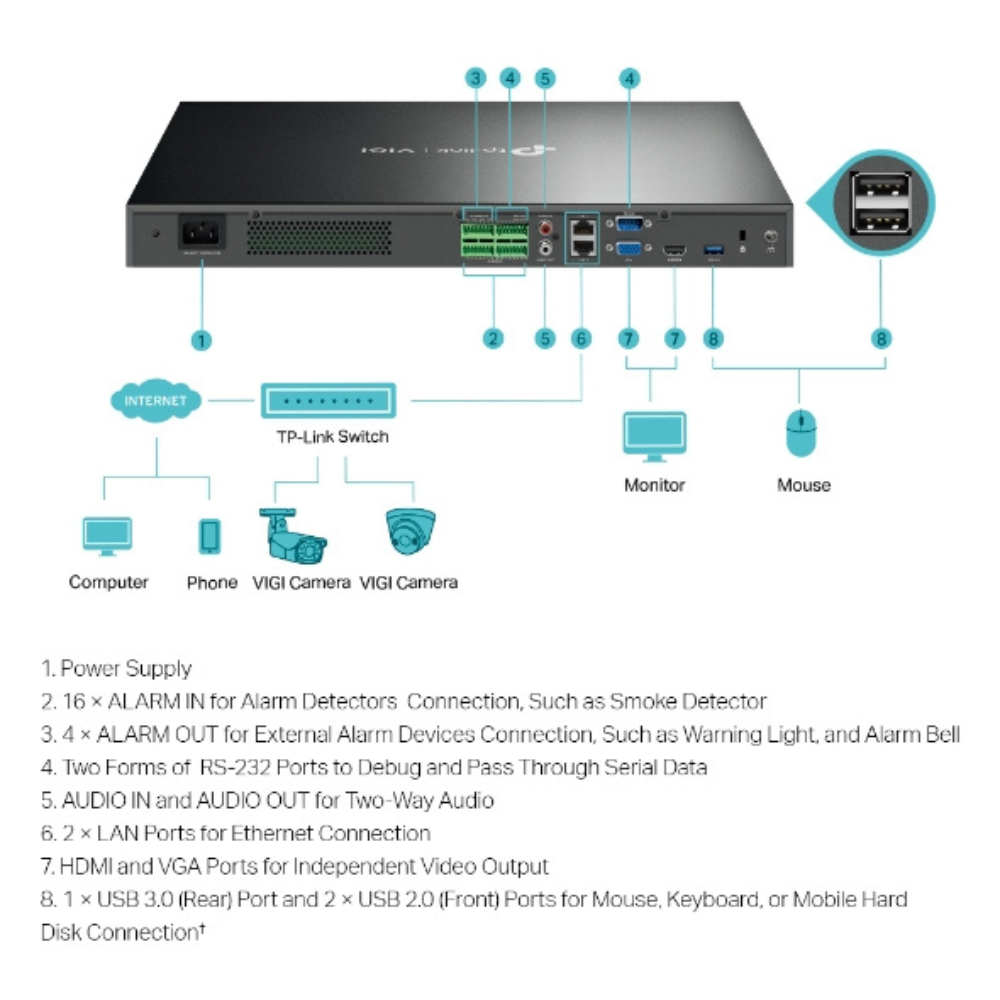

EXTERNAL INTERFACE
Network Interface 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet
Interface
USB Interface USB Interface
Audio Interface 1, Audio In; 1, Audio Out
Alarm In/Out 16/4
Serial Interface 1, RS232
Power 1× AC Jack
Reset Button 1
Speaker N/A
eSATA N/A
HDMI 1
VGA 1
HARD DISK
SATA 4 SATA Interfaces
Capacity Up to 10 TB Capacity for Each HDD
ALARM
General Alarm Motion Detection, Video Tampering, Intrusion Detection,
Line-Crossing Detection
Anomaly Alarm Video Loss, Offline and IP Conflict,Disk Exception, Login
Exception, Fan Exception
Alarm Linkage Recording, White Ligh Alarm, Buzzer, Log, Audible Alarm
NETWORK MANAGEMENT
Network Protocols UPnP (Plug and Play), NTP (Network Timing)
Interoperability ONVIF, CGI
Mobile Phone Access Android, iOS
Browser Chrome (57+), Firefox (52+), Edge (91+)
GENERAL
Storage Temperature -40–70 °C
Storage Humidity 10%~90% RH Non-Condensing
Package Contents VIGI Network Video Recorder
Installation Guide
Power Cord, HDD Power Cables, HDD Data Cables, and Terminal Blocks
Mounting Brackets, Screws and Rubber Feet
Working Temperature -10–55 °C
Working Humidity 10%~90% RH Non-Condensing
Dimensions( W X D X H ) 440 × 330 × 44 mm
External Power Supply 100-240 VAC, 50 to 60HZ, 1.5A
Net Weight 4.0 Kg
Gross Weight 5.2 Kg
Power Supply 100-240 VAC, 50 to 60HZ, 1.5A
Power Consumption 5 W (Without Disk)
48 W (With Disk)
Certifications CE, EAC, UKCA, RCM, Triman, RoHS, VCCI, FCC, IC, HDMI
RECORD PLAYBACK
Record Mode Manual Recording, Scheduling Recording, Motion Detection
Recording
Playback Mode Instant Playback, Regular Playback, Tag Playback, Event
Playback
Backup Mode Regular Backup, Video Clip Backup
Playback Function Play, Pause, Stop, Fast Forward, Fast Backward, Play by
Frame, Full Screen, Video Clip, Export Clip, Digital Zoom,
Lock Recording, Audio On/Off
VIDEO/IMAGE
IP Video Input 32-Channel
Multi-View Dispaly 1/4/6/8/9/16/25/32/36
Video Output Mode HDMI/VGA Independent Output
Recording Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF
HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz,
1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz,
1280x720/60Hz, 1024x768/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz,
1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz,
1024x768/60Hz

DOWNLOAD

Datasheet of VIGI NVR4032H

TP Link

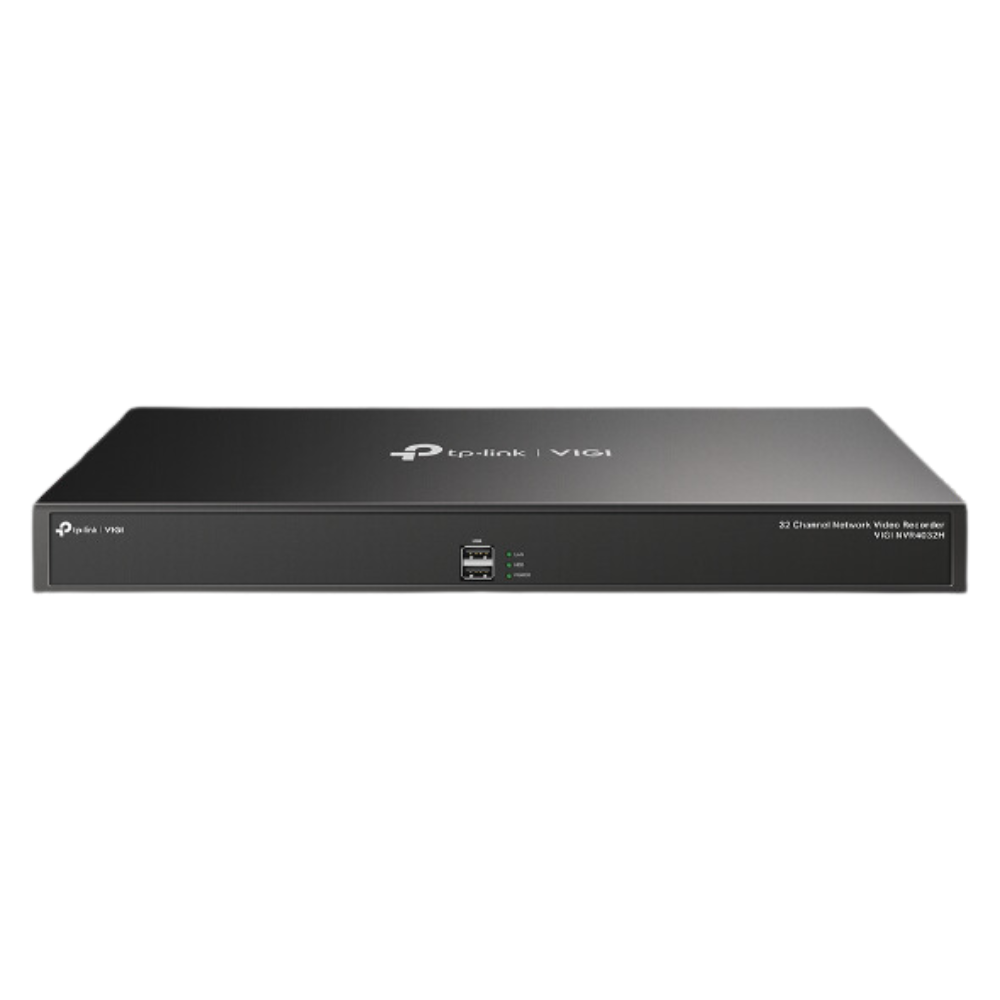

VIGI NVR4032H VIGI 32 Channel Network Video Recorder
