QUICK OVERVIEW

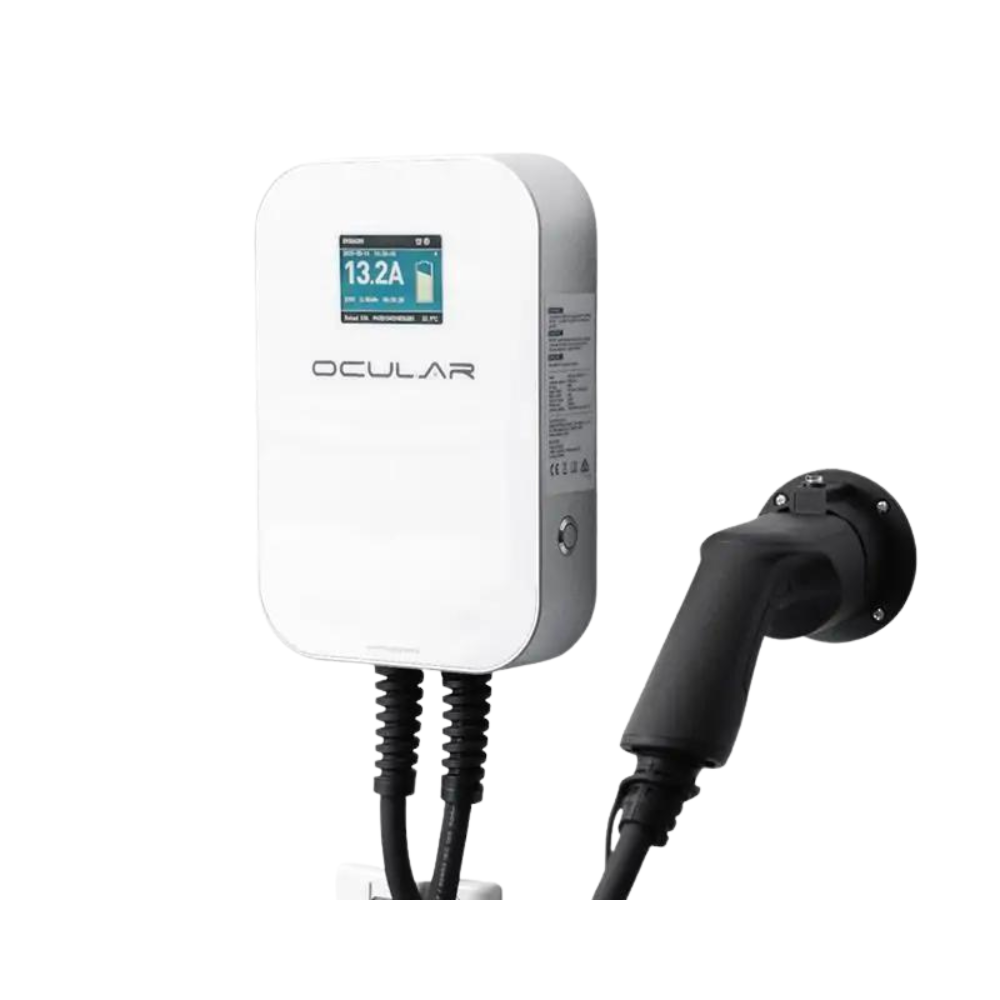

The Ocular Home Three-Phase EV Charging station combines a beautiful compact charging station with a class-leading LCD screen for live charging feedback. Move away from blank wallboxes and start charging with vision.
- THREE-PHASE 22kW (up to 120km of driving range per hour of charge). For Single Phase 7kW, check the dropdown menu.
- Warranty – 2 Years – Installation must adhere to the provided instructions accompanying the unit.
- Compatible with all new Type 2 EVs including Audi, BMW, BYD, EQC, Holden, Honda, Hyundai, Jaguar, KIA, Mazda, Mercedes Benz, Mini, MG, Mitsubishi, Nissan, Polestar, Porsche, Renault, Rivian, Tesla, Toyota, Volkswagen, Volvo, etc. If you are unsure if this charging station is right for your EV, get in touch with our team.
DESCRIPTION
The Ocular LTE EV Wallbox comes in 2 variants: Universal and Tethered.

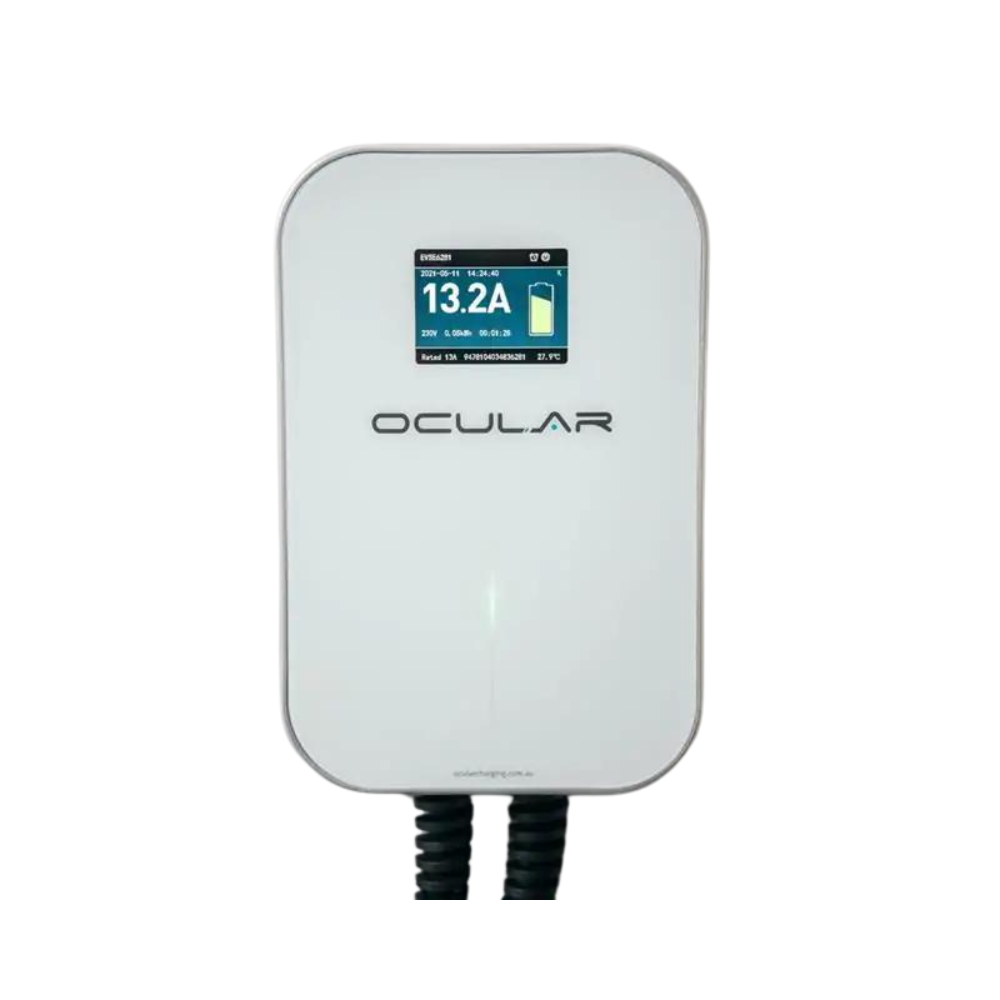

With a colourful LCD display, users can clearly see the current charging status including charging time, voltage, current internal temperature, etc.
Non-hardware faults that occur during charging will be automatically fixed. Faults that require manual repair will be displayed on the LCD screen. The housing is sturdy and has an IP66 rating. It can be easily installed on the wall. If the customer prefers charger to be installed on the stand, we can provide the matching one.
Faster charging
With the Ocular Universal charging station range, you can charge up to 4-12 times faster than with a conventional domestic portable.
Simple To Use, Easy to Install
The Ocular LTE can be installed easily with the unit preconfigured. The electrician just needs to mount and connect it to the electricity board of a home. Once installed, you can charge your electric car with a handle. The multicoloured LCD shows the current operating status at all times.
Integrated Cable Holder
Ocular is all about the user experience, as seen with the inbuilt cable holder to neatly wrap and protect your EV equipment.
Multiple Variations

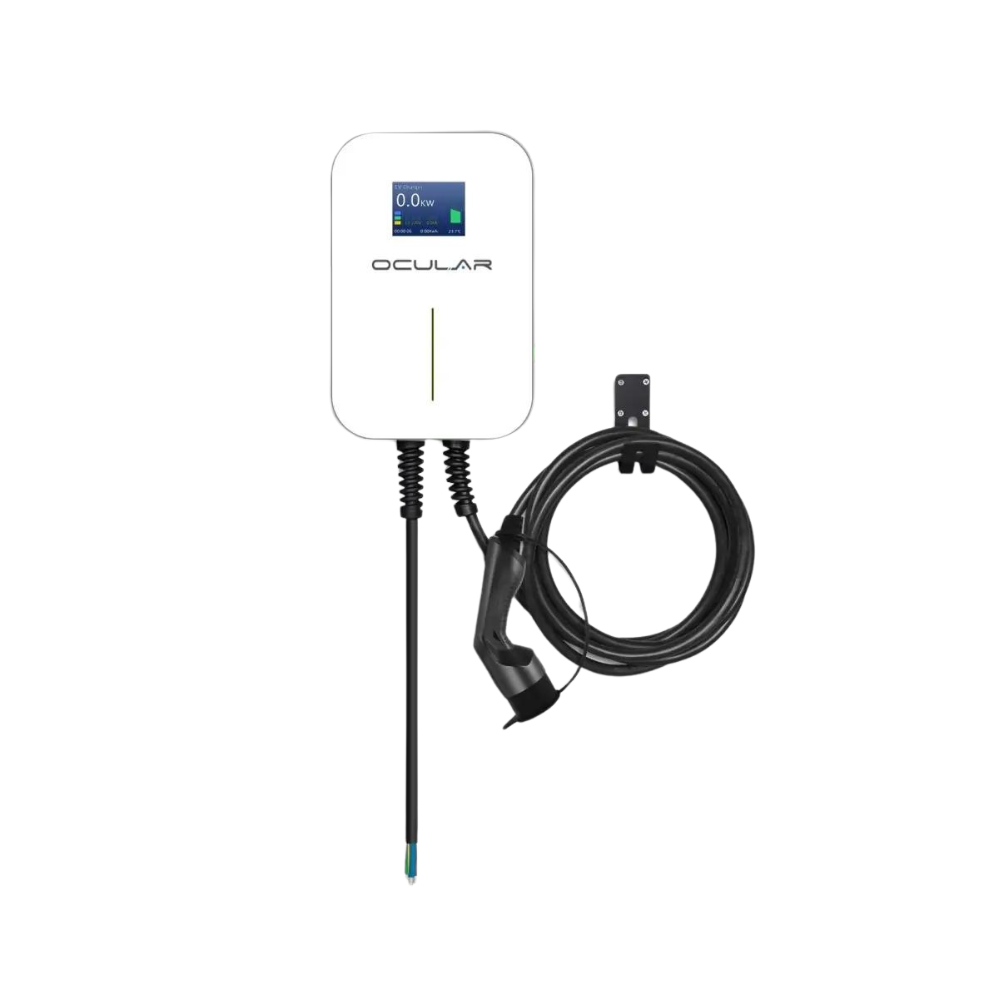

Choose either a universal charging station or purchase with a 6m Type 2 cable hardwired onto the unit. Available in both single and three-phase.
Charge every EV in Australia
Every EV in Australia is compatible with this EV charger, including Tesla. We understand that people don’t keep the same EV forever and your EV charging solution should provide you with the flexibility to upgrade or add more EVs to your home.
Australian Owned
100% Australian-owned with Australian-based support. Be confident that your charging station is backed locally and that your warranty is held under Australian consumer laws.
Keep this in mind when installing:
For your safety, the installation must only be carried out by a licensed and qualified electrician familiar with Australian industry standards and is fully responsible for the installation.
Input & Output
- Input voltage/Output voltage – AC 230V / 400V
- Adjustable output – 8A/15A/20A/24A/32A – Via the right hand side button – April 2022 Models and onwards
- 3-Phase
- Input frequency – 50Hz
- Max. output power – 7.4KW(1 Phase) / 22kW (3-Phase)
- Max. output current – 32Amp
- Charging interface type – IEC 62196-2, SAE J1772
Protection
- Over voltage protection
- Under voltage protection
- Over load protection
- Short circuit protection
- Earth leakage protection
- Over-temp protection
- Lightning protection
Function and Accessory
- LCD – 3.5 inch
- RCD – Type A + 6mA DC
- LED Indicator light
- Intelligent power adjustment
Working environment
- Protection degree – IP66
- Environment temperature – -40 – 75 Degrees Celsius
- Relative humidity- 0-95%
- Cooling – Natural Air Cooling
- Standby power consumption- <8W
Mechanical
- Dimension (W/H/D) – 295/195/65mm
- Weight – 6 kg
Mounting Accessories
- Wall-mounting bracket
- Ground-mounting pole – Optional
Certificate
- CE, TUV, FCC, CSA, RoHS
QUICK OVERVIEW
The Ocular Home Three-Phase EV Charging station combines a beautiful compact charging station with a class-leading LCD screen for live charging feedback. Move away from blank wallboxes and start charging with vision.
- THREE-PHASE 22kW (up to 120km of driving range per hour of charge). For Single Phase 7kW, check the dropdown menu.
- Warranty – 2 Years – Installation must adhere to the provided instructions accompanying the unit.
- Compatible with all new Type 2 EVs including Audi, BMW, BYD, EQC, Holden, Honda, Hyundai, Jaguar, KIA, Mazda, Mercedes Benz, Mini, MG, Mitsubishi, Nissan, Polestar, Porsche, Renault, Rivian, Tesla, Toyota, Volkswagen, Volvo, etc. If you are unsure if this charging station is right for your EV, get in touch with our team.
DESCRIPTION
The Ocular LTE EV Wallbox comes in 2 variants: Universal and Tethered.
With a colourful LCD display, users can clearly see the current charging status including charging time, voltage, current internal temperature, etc.
Non-hardware faults that occur during charging will be automatically fixed. Faults that require manual repair will be displayed on the LCD screen. The housing is sturdy and has an IP66 rating. It can be easily installed on the wall. If the customer prefers charger to be installed on the stand, we can provide the matching one.
Faster charging
With the Ocular Universal charging station range, you can charge up to 4-12 times faster than with a conventional domestic portable.
Simple To Use, Easy to Install
The Ocular LTE can be installed easily with the unit preconfigured. The electrician just needs to mount and connect it to the electricity board of a home. Once installed, you can charge your electric car with a handle. The multicoloured LCD shows the current operating status at all times.
Integrated Cable Holder
Ocular is all about the user experience, as seen with the inbuilt cable holder to neatly wrap and protect your EV equipment.
Multiple Variations
Choose either a universal charging station or purchase with a 6m Type 2 cable hardwired onto the unit. Available in both single and three-phase.
Charge every EV in Australia
Every EV in Australia is compatible with this EV charger, including Tesla. We understand that people don’t keep the same EV forever and your EV charging solution should provide you with the flexibility to upgrade or add more EVs to your home.
Australian Owned
100% Australian-owned with Australian-based support. Be confident that your charging station is backed locally and that your warranty is held under Australian consumer laws.
Keep this in mind when installing:
For your safety, the installation must only be carried out by a licensed and qualified electrician familiar with Australian industry standards and is fully responsible for the installation.
Input & Output
- Input voltage/Output voltage – AC 230V / 400V
- Adjustable output – 8A/15A/20A/24A/32A – Via the right hand side button – April 2022 Models and onwards
- 3-Phase
- Input frequency – 50Hz
- Max. output power – 7.4KW(1 Phase) / 22kW (3-Phase)
- Max. output current – 32Amp
- Charging interface type – IEC 62196-2, SAE J1772
Protection
- Over voltage protection
- Under voltage protection
- Over load protection
- Short circuit protection
- Earth leakage protection
- Over-temp protection
- Lightning protection
Function and Accessory
- LCD – 3.5 inch
- RCD – Type A + 6mA DC
- LED Indicator light
- Intelligent power adjustment
Working environment
- Protection degree – IP66
- Environment temperature – -40 – 75 Degrees Celsius
- Relative humidity- 0-95%
- Cooling – Natural Air Cooling
- Standby power consumption- <8W
Mechanical
- Dimension (W/H/D) – 295/195/65mm
- Weight – 6 kg
Mounting Accessories
- Wall-mounting bracket
- Ground-mounting pole – Optional
Certificate
- CE, TUV, FCC, CSA, RoHS
- Regular price
- $1,200.00
