Overview

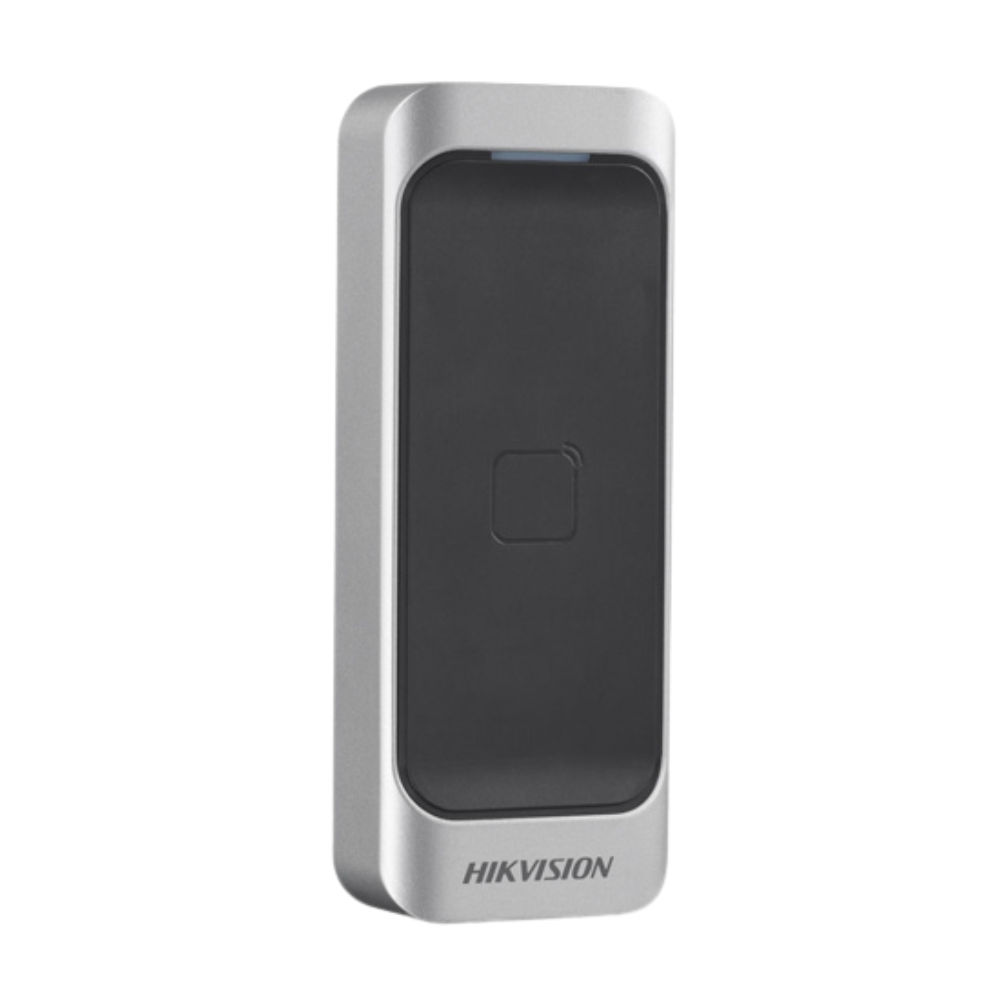

Hikvision DS-K1107MN Proximity Card Reader

The Hikvision DS-K1107 Series of card readers supports RS-485 and Wiegand (W26/W34) protocols (Site selectable).
The built-in 13.56 MHz Mifare card reading module meets the ISO 14443-A standard and reads Mifare ID cards.

• LED Indicator Displays Reader Status
• Tamper-Resistant Alarm
• Supports Mifare Cards
• RS-485 and Wiegand (W26/W34) Protocols

System Parameters

• Card Reading Distance: Mifare Card:≤50 mm
• ID Settings: Setting by the DIP Switch on the Main Board
• Processor: 32-bit

General

• Audio Alert: Beeper
• Power Supply: 12VDC
• Communication Interface: RS-485 / Wiegand (DIP Switch Selectable)
• Power Consumption: ≤2W
• LED Indicator: Power Indicator; Status LED Indicator
• Protection Level: IP64

Specifications

System

• Processor32-bit

Interface

• TAMPERSupport
• RS-485Support
• WiegandSupport (set via DIP switch)

Authentication

• Card Reading Frequency13.56 MHz
• Card Reading Distance≤50 mm (≤1.97")

General

• IndicatorPower indicator, status indicator
• Power Supply12 VDC
• Power Consumption≤2 W
• Working Temperature-20 °C to 65 °C (-4 °F to 149 °F)
• Working Humidity10% to 90% (Non Condensing)
• Protective LevelIP65
• Dimensions115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'' )
• InstallationWall Mounting with Screws; Do Not Support Gang Box
• BuzzerSupport
