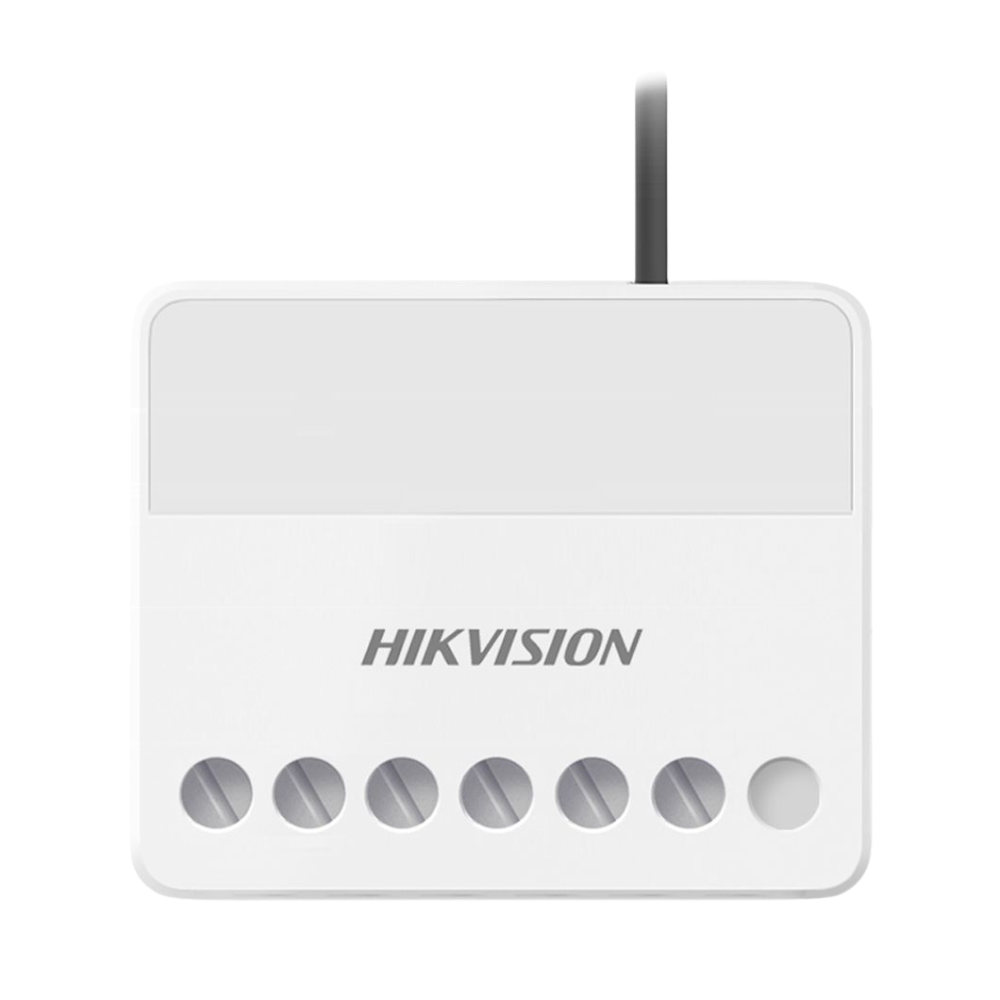

The Hikvision HIK-PM1-O1L 12V relay module has two-way wireless communication with RF supervision. It can be controlled from the Hik-Connect app, or a remote control key fob, and is fully remote configurable through the Hik-Connect app.

N.B. The AX PRO system is not compatible with the Axiom system.

Specifications

• Power supply: 7 VDC to 24 VDC
• Frequency: 433Mhz
• Encryption: AES-128
• Size: 38mm x 25mm x 18mm
• Weight: 28.5g

Feature

• One tamper input
• Contacts are selectable NO or NC
• Latching or momentary operation
• Small case design, easily hidden away
• LED for status display
• One button control from Hik-Connect app/key fob
• Fully remote configurable through the Hik-Connect app
• Frequency hopping
