Code:

HIK-KIS101-P-S

Brand:

Hikvision

Product Details

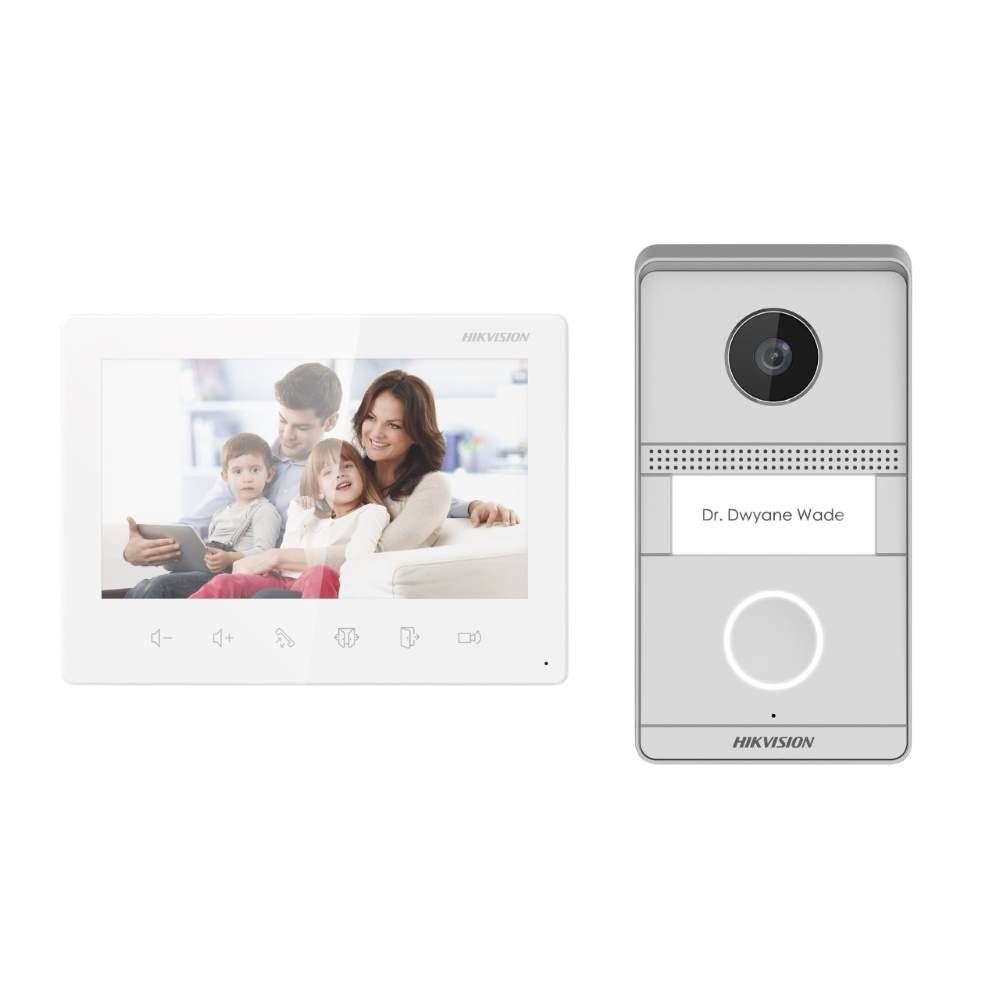

Hikvision 2 Wire Intercom Kit, HD Analogue, 1 to 1, Surface Mount

Overview

• The Hikvision HIK-KIS101-P-S is a 2 wire surface mount intercom bundle which includes a IK07 rated analogue door station featuring a 2MP HD resolution camera, along with a 7 inch room station. This 2nd generation bundle comes with comes with everything required for a one-to-one system, and is a cost effective solution for residential or small business premises, especially when retrofitting existing sites. It is a great starting point, and can be expanded if required up to 2 doors and 4 room stations. It includes the required power supply, simplifying the ordering process and ensuring a smooth setup. Bundle inclusions: 1x HIK-KV1101-ME2-S 1x HIK-KH1200 1x power supply

Features

2 Wire Analogue Door Station

         Single button

         2MP HD camera

         Low illumination

         Tamper proof

         Vandal resistant

         Built-in omnidirectional microphone and loudspeaker

2 Wire Analogue Room Station

         7 inch colour screen

         6 buttons

         Built-in omnidirectional microphone and loudspeaker

Specifications

2 Wire Analogue Door Station

         Relay: 2 outputs

         Video resolution: 1024 x 600

         Lens: H: 100 degrees, V: 69 degrees

         Weatherproof rating: IP65

         Protection level: IK07

         Mount: surface

         Power: 12V DC

         Dimensions: 150 x 82 x 23.5mm

2 Wire Analogue Room Station

        Display size: 7 inch

        Alarm input: 4 channels

        Relay output: 1

        Video resolution: 1024 x 600

        Button: 6 touch buttons

        Built-in omnidirectional microphone

        Built-in loudspeaker

        Dimensions: 187 x 137 x 25.4mm

Downloads

• HIK-KIS101-P-S Datasheet.pdf
