Code:

HIK-KIS101-P-F

Brand:

Hikvision

Product Details

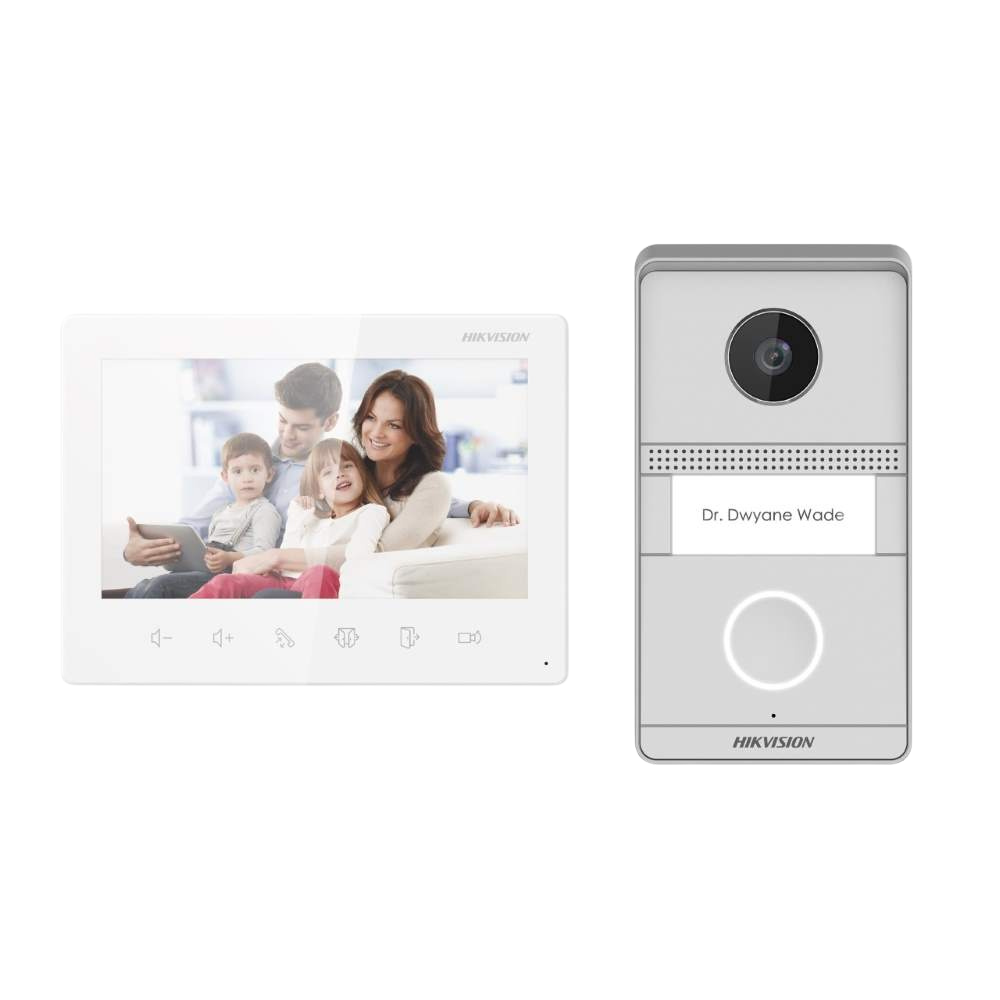

Hikvision 2 Wire Intercom Kit, HD Analogue, 1 to 1, Flush Mount

Overview

The Hikvision HIK-KIS101-P-F is a 2 wire flush mount intercom bundle which includes an IK07 rated analogue door station featuring a 2MP HD resolution camera, along with a 7 inch room station. This 2nd generation bundle comes with everything required for a one-to-one system and is a cost-effective solution for residential or small business premises, especially when retrofitting existing sites. It is a great starting point and can be expanded if required up to 2 doors and 4 room stations. It includes the required power supply, simplifying the ordering process and ensuring a smooth setup.

Included items:

• 1x HIK-KV1101-ME2-F
• 1x HIK-KH1200
• 1x power supply

 Features

• 2 Wire Analogue Door Station

  • Single button
  • 2MP HD camera
  • Low illumination
  • Tamper proof
  • Vandal resistant
  • Built-in omnidirectional microphone and loudspeaker

  2 Wire Analogue Room Station

  • 7 inch colour screen
  • 6 buttons
  • Built-in omnidirectional microphone and loudspeaker

Specifications

• 2 Wire Analogue Door Station

  • Relay: 2 outputs
  • Video resolution: 1024 x 600
  • Lens: H: 100 degrees, V: 69 degrees
  • Weatherproof rating: IP65
  • Protection level: IK07
  • Mount: flush
  • Power: 12V DC
  • Dimensions: 150 x 82 x 23.5mm

  2 Wire Analogue Room Station

  • Display size: 7 inch
  • Alarm input: 4 channels
  • Relay output: 1
  • Video resolution: 1024 x 600
  • Button: 6 touch buttons
  • Built-in omnidirectional microphone
  • Built-in loudspeaker
  • Dimensions: 187 x 137 x 25.4mm

Downloads

• HIK-KIS101-P-F Datasheet.pdf
