Code:

HIK-KH6320-WTDE1

Brand:

 Hikvision

Product Details

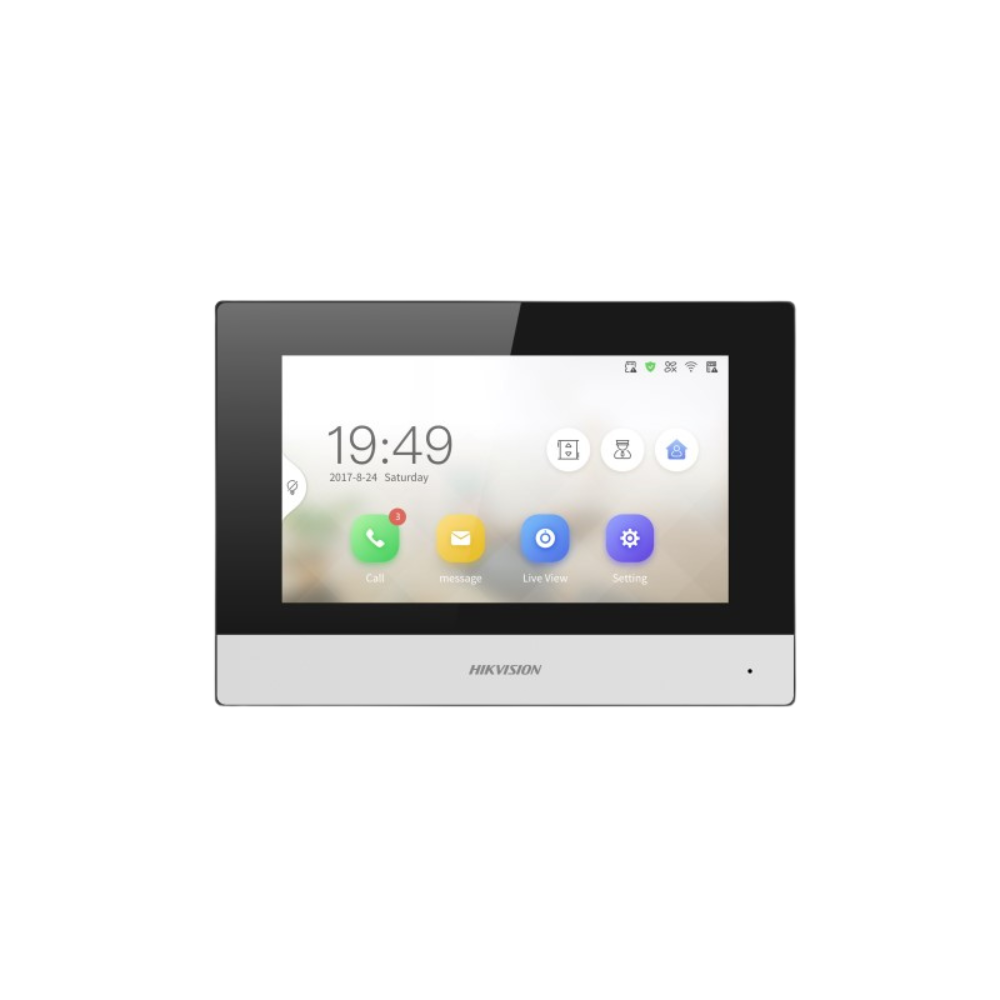

Hikvision Hybrid Intercom Room Station, 4-Wire/IP/WiFi, 7" Touch Screen

Overview

The HIK-KH6320-WTDE1 is a hybrid room station that supports IP, Wi-Fi, 4-wire analogue and the Hik-Connect mobile app. It can be powered by a 12V DC power source or PoE and provides power to 4 wire door stations that are connected to it. Due to its hybrid technology feature set, it can support a maximum of two 4 wire door stations as well as up to nine IP door stations.

Features

• 7-inch colour touch screen
• SD card slot to capture images upon door button press
• Hik-Connect mobile app support
• Direct live view Hikvision CCTV cameras or NVR channels

Specifications

• Screen resolution: 1024 x 600
• Live view camera capacity: 16
• 4 wire analogue door capacity: 2
• IP door capacity: 9
• Sub room station capacity: 5
• Dimensions: 200 W x 140 H x 23.6 D (mm)
• Power supply: Standard PoE or 12 VDC

Downloads

• HIK-KH6320-WTDE1 Datasheet.pdf
