Code:

HIK-KD9633-WBE6

Brand:

Hikvision

Product Details

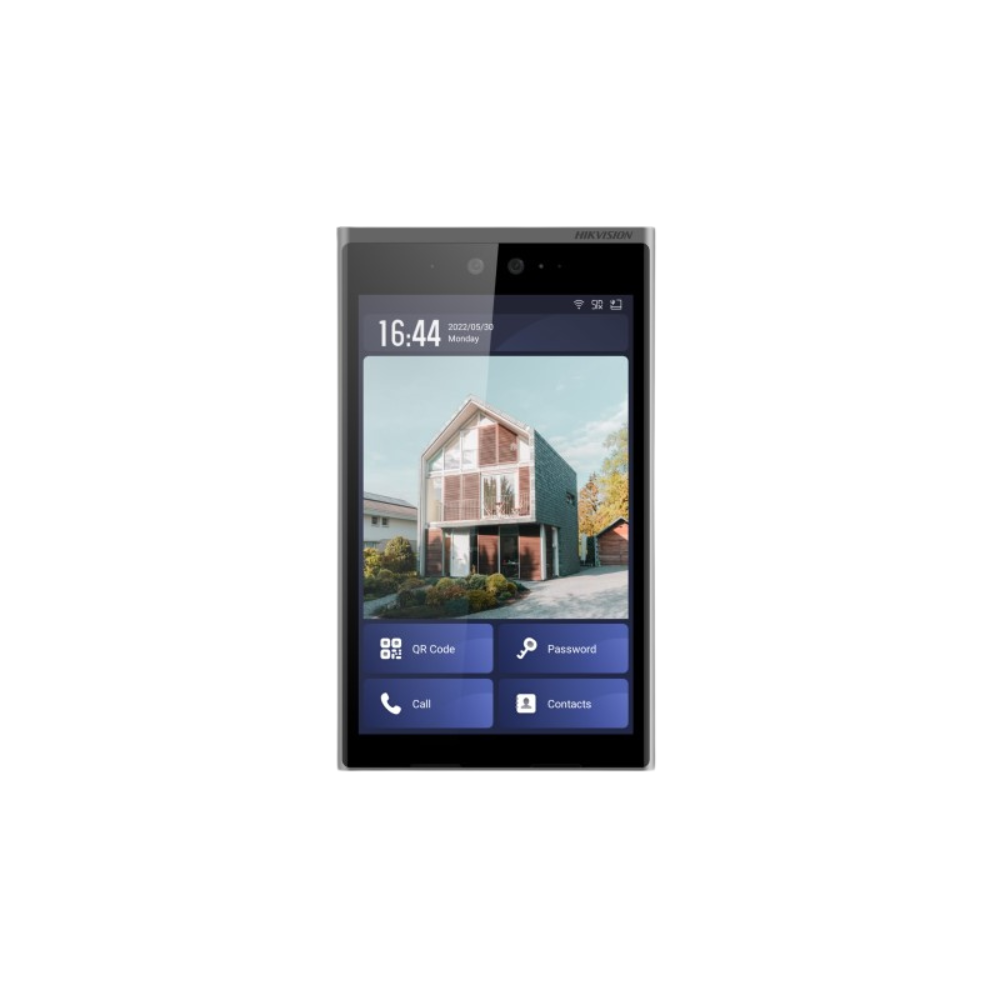

 Hikvision Intercom, 10" Facial Door Station, 2.5D Curved 10" Screen, 10K Faces

Overview

The HIK-KD9633-WBE6 is an intelligent IP video door station intercom.

Features

• Aluminium frame
• 2.5D curved 10.1-inch IPS touch screen
• Multiple authentications
• Built in omnidirectional microphone
• Built in loudspeaker Audio
• Noise suppression and echo cancellation

• Screen size: 10.1-inch
• Touch screen Type: Colourful IPS
• Resolution: 128 x 800
• Video standard: H.264
• Camera field of view: Horizontal 88 degrees, vertical 44 degrees
• WDR Support
• Resolution: 2 MP
• Audio compression: Standard G.711 U, G.711 A
• Compression bitrate: 64 Kbps
• User capacity: 20000
• Card capacity: 100000
• Face capacity: 10000
• Sub door station capacity: 16
• Network: 10/100/1000 Mbps & Wi-Fi
• Card reader: CSN (Mifare)
• Alarm input: 4 (2x for REX & 2x for door sensor by default)
• Output: 2x relay
• Weight: 1.265 kg
• Weather rating: IP65
• Anti-vandal rating: IK07
• Working temperature: -30 degrees to 60 degrees Celsius
• Dimensions: 271 mm (H) x 159.2 mm (W) x 26.5 mm (D)
• Power supply: 12 VDC, 2 A
• Power consumption: 18W MAX

Downloads

• HIK-KD9633-WBE6 Datasheet.pdf
