Code:

HIK-KAD706Y-P

Brand:

 Hikvision

Product Details

Hikvision 2nd Gen. 2 Wire Y Series Intercom, Audio/Video Distributor, 6 Devices, PSU

Overview

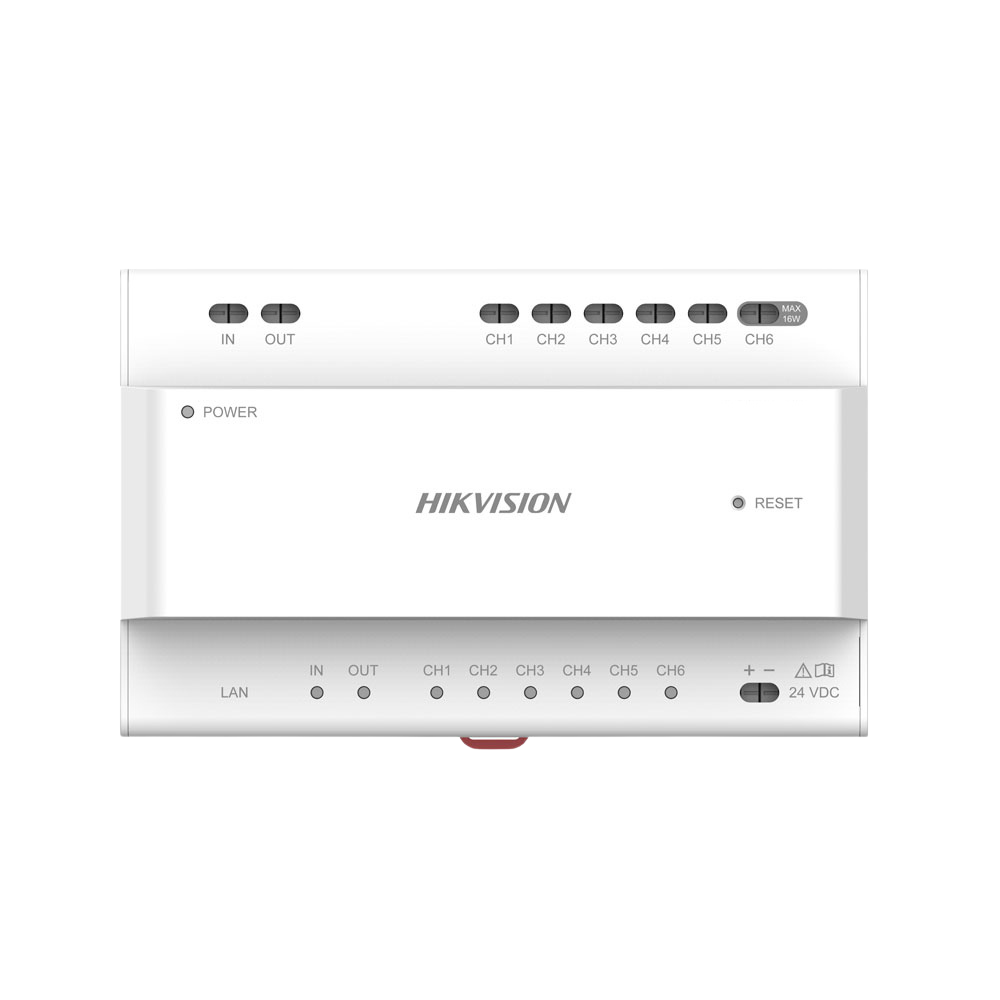

The Hikvision HIK-KAD706Y-P is a 2-wire distributor that provides power and communication between the door and room station devices, supporting up to six devices and channels. One channel supports a door (HIK-KD8003Y-IME2) or room station (HIK-KH6320Y-WTE2), while the other five channels support only room stations. This distributor is an IP-over-2-wire solution and allows the Hikvision 2-wire system connect to the internet to support the Hik-Connect mobile app. The 2-wire termination is non-polarity conscious making this an ideal upgrade solution where existing cabling needs to be utilised.

Features

• 6 x 2-wire device channels (1 x door/5 x rooms or 6 x rooms in total)
• 2 x 2-wire distributor channels
• 8 x LED network status indicators
• 1 x Ethernet port
• 24V DC power supply included

Specifications

• Power supply: 24 VDC (included)
• Power consumption: less than 4W
• Working temperature: -10 degrees Celsius to +55 degrees Celsius
