- Supplied fully assembled
- 580mm max. device depth
- Equipment mounts facing upwards in the cabinet
- Constructed of cold-rolled steel

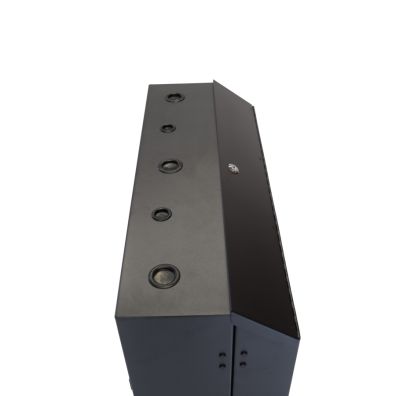

- Cable entry glands at the top and bottom of the cabinet
- Static load capacity 60kg&

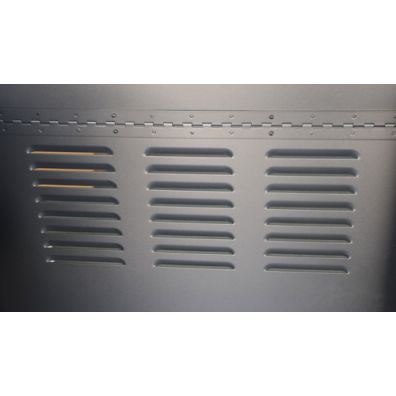

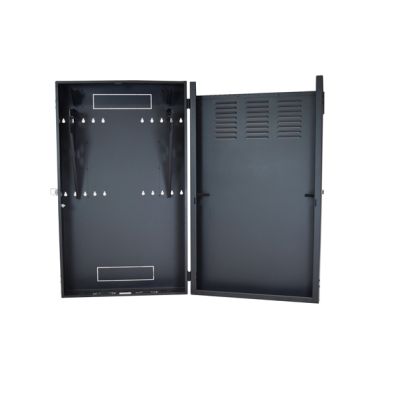

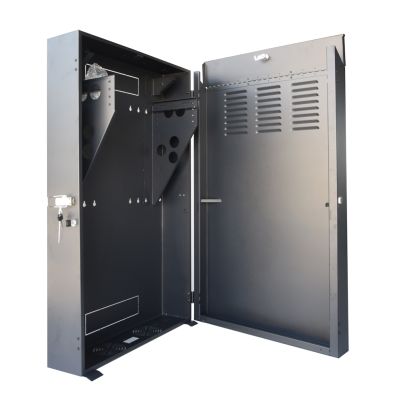

- Reversible vented front door
- Patch panel mounting bracket
- Flip down the top door section for easy access to a patch panel

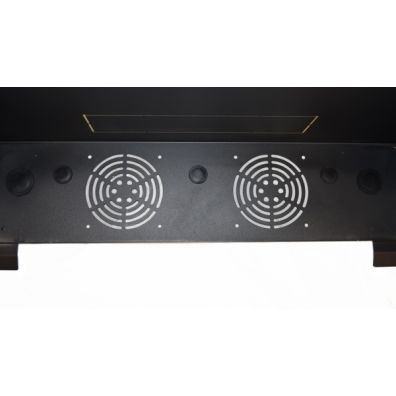

- 2-way Fan cut out on the base (Fans NOT included but can be purchased here: 002.004.0003)
Specifications
SKU | 002.013.0520 |
---|---|
Manufacturer Part# | 002.013.0520 |
Rack RU Size | 5RU |
Cabinet Type | Wall Mount |
Colour | Black |
Material | Cold-rolled Steel |
External Height | 740mm |
External Width | 660mm (incl. hinge) |
External Depth | 250mm |
Internal Height | 580mm (rail top to base) |
Internal Width | 470mm |
Rails | Adjustable 2U Rail & 5U with RU Markings |
Shelf Quantity | N/A |
Reversible Hinges | Yes |
Tempered Glass | No |
Carton Height | 1060mm |
Carton Width | 720mm |
Carton Depth | 320mm |
Carton Weight | 34kg |
Warranty | 3 Years |
