FEATURES

Supplied fully assembled
940mm max. device depth
Equipment mounts facing upwards in the cabinet
Constructed of cold-rolled steel
Cable entry glands at the top and bottom of the cabinet
Static load capacity 60kg
Reversible vented front door
Patch panel mounting bracket
Flip down top door section for easy access to a patch panel
2-way Fan cut out on the base (Fans NOT included but can be purchased here: 002.004.0003)

SKU	002.013.0536
Manufacturer Part#	002.013.0536
Rack RU Size	5RU
Cabinet Type	Wall Mount
Colour	Black
Material	Cold-rolled Steel
External Height	1090mm
External Width	660mm (incl. hinge)
External Depth	250mm
Internal Height	940mm (rail top to base)
Internal Width	470mm
Rails	Adjustable 2U Rail & 5U with RU Markings
Shelf Quantity	N/A
Reversible Hinges	Yes
Tempered Glass	No
Carton Height	1060mm
Carton Width	720mm
Carton Depth	320mm
Carton Weight	34kg
Warranty	3 Years

4Cabling

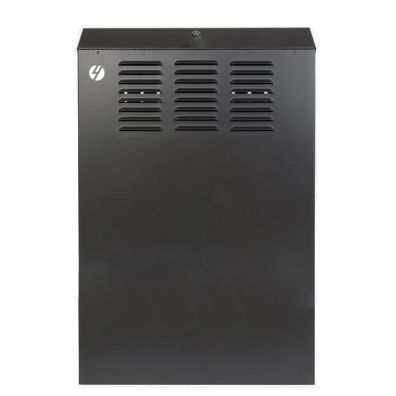

4Cabling 5U 250mm Deep x 1090mm Wide Vertical Wall Mount Server Rack

SKU 002.013.0536

FEATURES

Supplied fully assembled
940mm max. device depth
Equipment mounts facing upwards in the cabinet
Constructed of cold-rolled steel
Cable entry glands at the top and bottom of the cabinet
Static load capacity 60kg

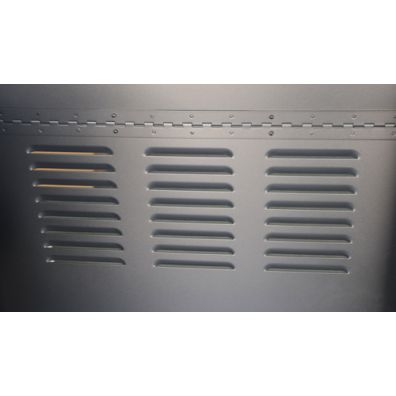

Reversible vented front door
Patch panel mounting bracket
Flip down top door section for easy access to a patch panel
2-way Fan cut out on the base (Fans NOT included but can be purchased here: 002.004.0003)

SKU	002.013.0536
Manufacturer Part#	002.013.0536
Rack RU Size	5RU
Cabinet Type	Wall Mount
Colour	Black
Material	Cold-rolled Steel
External Height	1090mm
External Width	660mm (incl. hinge)
External Depth	250mm
Internal Height	940mm (rail top to base)
Internal Width	470mm
Rails	Adjustable 2U Rail & 5U with RU Markings
Shelf Quantity	N/A
Reversible Hinges	Yes
Tempered Glass	No
Carton Height	1060mm
Carton Width	720mm
Carton Depth	320mm
Carton Weight	34kg
Warranty	3 Years
