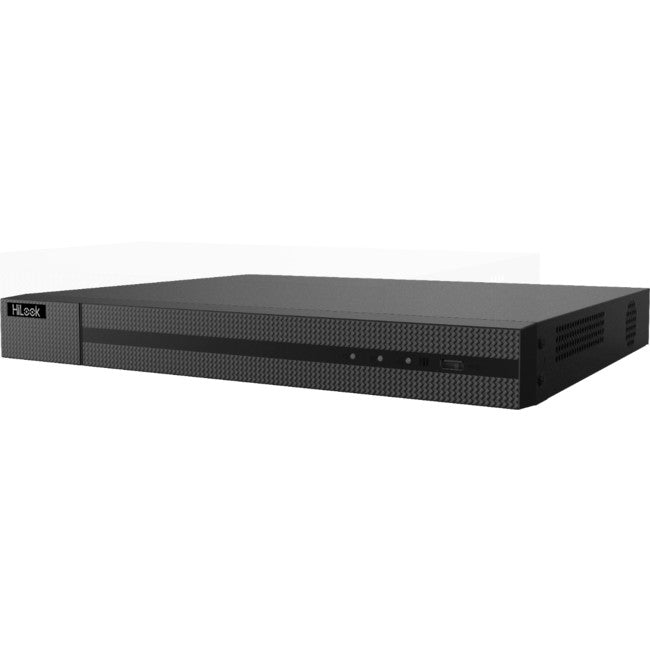

Hilook by Hikvision NVR-216MH-C-16P 16 PoE Ports 4K 2x SATA 1x HDMI, 16 Channel Network Video Recorder

All HiLook devices can be managed with the HiLookVision mobile app on both on PC and mobile. The app is available on both the Google Play Store and Apple App Store. The HiLookVision mobile app offers all the expected standard functionalities like live view, video recording, remote search and playback, and alarm management, which makes the HiLook system simple and easy to manage.



NVR Features:

  • Up to 16-ch IP camera inputs
  • H.265 /H.265/H.264 /H.264 video formats
  • Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
  • Up to 160 Mbps incoming bandwidth


Videos









Specifications

Video And Audio

  • IP Video Input16-ch
  • HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Incoming Bandwidth160 Mbps
  • Outgoing Bandwidth80 Mbps
  • Audio Output1-ch, RCA (Linear, 1 KO)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k O)

Decoding

  • Decoding FormatH.265 ,H.265,H.264 ,H.264
  • Decoding Capability4-ch@1080p
  • Synchronous Playback16-ch
  • Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Network

  • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

  • Interface16-ch
  • Power≤ 150W
  • StandardIEEE 802.3 af/at

RAID

  • RAID TypeNo

Auxiliary Interface

  • SATA2 SATA interfaces
  • CapacityUp to 8TB capacity for each disk
  • USB Interface2 × USB 2.0

General

  • Power Supply100-240V~, 50/60Hz, 3.2A MAX
  • Consumption≤ 15W
  • Working Temperature-10 to 55 C ( 14 to 131 F)
  • Working Humidity10 to 90 %
  • Chassis1U chassis
  • Dimension (W × D × H)385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
  • ≤ 2.6 kg (5.7 lb)


        Downloads

        Hilook-Datasheet-of-NVR-216MH-C_16P_V4.30.210_20201219_CSP



        3 Years Warranty

        All our surveillance products are covered by 3 years back-to-base manufacturer warranty.

        You will find warranty periods displayed clearly on each product page. It is limited to the original purchaser only and is not transferrable to any other party. It does not include damage to the item from incorrect installation or use.

        You must contact us before returning your item so that we can give you the most appropriate shipping address based on your location and an RMA ticket number. You can contact us at info@cheapsecureparts.com.au or by phone on 1300 658 805.

        The customer is responsible for inbound freight to Cheap Secure Parts.
