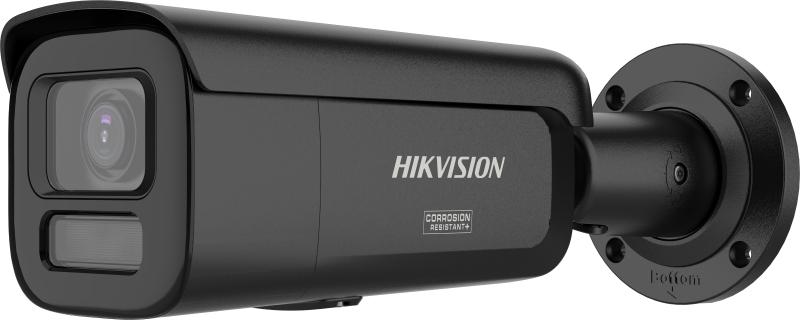

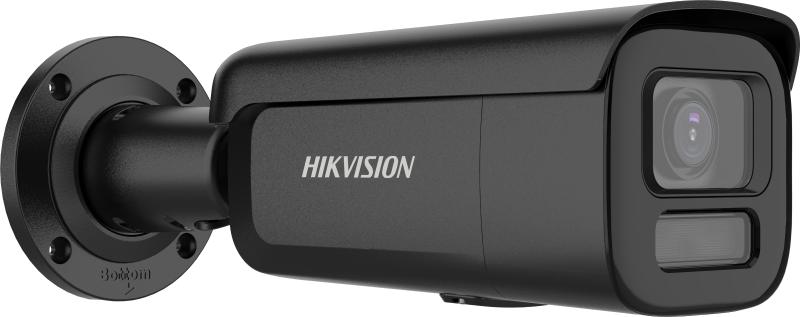

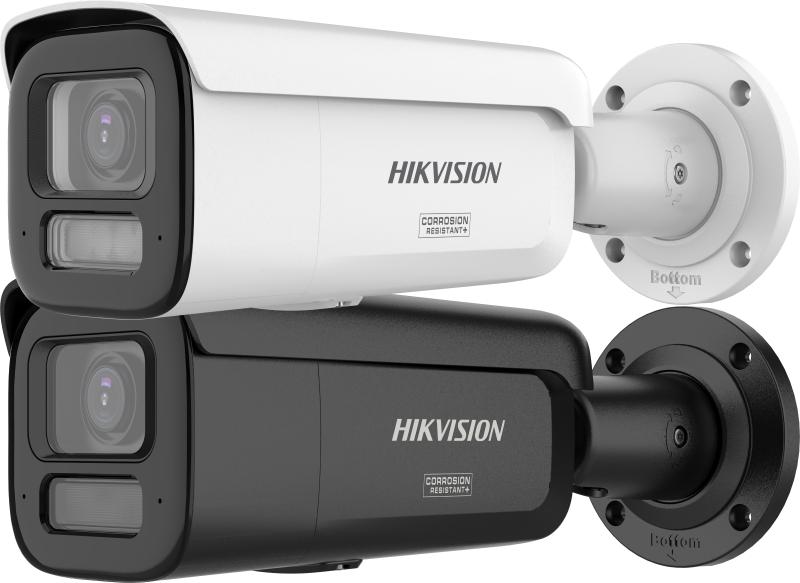

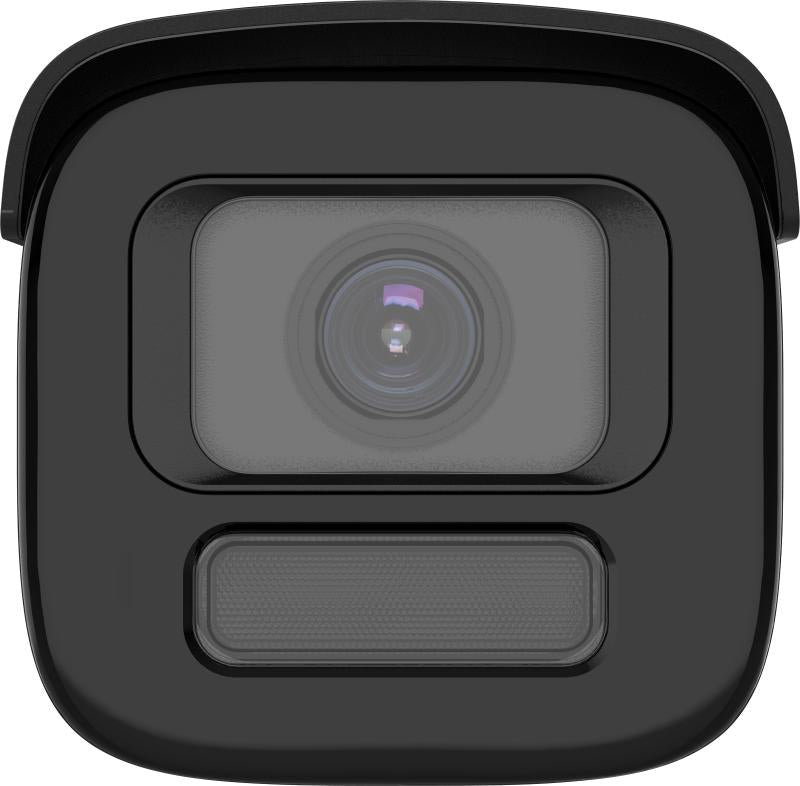

DS-2CD2667G3-LIZSY

Feature

• HikAI-ISP for excellent noise reduction effect
• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Motorized varifocal lens for easy installation and monitoring
• Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
• Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
• Water and dust resistant (IP67) and vandal resistant (IK10)


 Specification

Camera

• Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution3200 × 1800
• Min. IlluminationColor: 0.001 Lux @ (F1.2, AGC ON),0 Lux with light
• Shutter Time1 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

• Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
• Lens MountIntegrated
• Iris TypeFixed
• ApertureF1.2
• Depth of Field1 m to ∞

DORI

• DORI

  Wide: D: 74.3 m, O: 29.5 m, R: 14.9 m, I: 7.4 m

  Tele: D: 183.3 m, O: 72.8 m, R: 36.7 m, I: 18.3 m

• Illuminator
• Supplement Light TypeWhite Light,IR
• Supplement Light RangeUp to 60 m
• Smart Supplement LightYes
• IR Wavelength850 nm

Video

• Main Stream

  50 Hz:

  25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz:

  30 fps (3200 × 1800，2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264,

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region of Interest (ROI)1 fixed region for main stream

Audio

• Audio TypeMono sound
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz

Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live ViewUp to 6 channels
• APIONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+,

  Local service: Chrome 80+, Firefox 80+, Edge 89+


• Image Parameters SwitchYes
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog
• SNR≥ 52 dB
• Wide Dynamic Range (WDR)130 dB
• Image StabilizationEIS
• Privacy Mask4 programmable polygon privacy masks

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Audio

  1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

  1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• Reset KeyYes

Event

• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart EventScene change detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email

Deep Learning Function

• Face CaptureYes
• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

General

• Power

  12 VDC ± 25%, 1.08 A, max. 13 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

  PoE: PoE(IEEE 802.3at class 4)，MAX：15W

• MaterialFront cover: Metal, body: Metal, bracket: Metal
• Dimension298 mm × 97.9 mm × 95.7 mm (11.8" × 3.9" × 3.8")
• Package Dimension386 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
• WeightApprox. 1520 g (3,4 lb.)
• With Package WeightApprox. 2326 g (5.1 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

• EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017

• EnvironmentCE-RoHS: 2011/65/EU
• ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
• Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
