TiOC, also known as three-in-one camera, integrates 24/7 full-color monitoring, active deterrence and AI into one smart and innovative solution.

Smart Dual Illuminators Dahua Smart Dual Illuminators technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the warm light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the warm light is off and the IR illuminator is on, which reduces light pollution efficiently

Siren and Light Active Deterrence Dahua siren and light active deterrence network camera supports the light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customized voice importing.

Camera Features:

8 MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSense Network Camera

> 8 MP 1/2.8" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 8 MP (3840 × 2160)@25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.

> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).

> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.

> 12 VDC/PoE power supply.

> IP67 protection.

> Sound and light alarm (red and blue lights).

> SMD 3.0.

> One press arming/disarming through alarm input.


Specifications

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.004 lux@F1.0 (Color, 30 IRE)
0.0004 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)

S/N Ratio

﹥ 56 dB

Illumination Distance

30 m (98.43 ft) (IR)
30 m (98.43 ft) (warm light)

Illuminator On/Off Control

Auto; manual

Illuminator Number

1 (IR LED)
1 (warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Field of View

2.8 mm: Horizontal: 106°× Vertical: 55°× Diagonal: 125°
3.6 mm: Horizontal: 85°× Vertical: 45°× Diagonal: 100°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 2.0 m (6.56 ft)
3.6 mm: 2.8 m (6.23 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

91.0 m (298.56 ft)

36.4 m

( 119.42 ft)

18.2 m

(59.71 ft)

9.1 m

(29.86 ft)

3.6 mm

107.6 m (353.02 ft)

43.0 m

( 141.08 ft)

21.5 m

(70.54 ft)

10.8 m

(35.43 ft)

Professional, intelligent

IVS (Perimeter Protection)

Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)

SMD 3.0

Less false alarm, longer detection distance

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 3840 × 2160@(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–20480 kbps
H.265: 3 kbps–20480 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

Audio

Built-in MIC

Yes

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20 (Total bandwidth: 72 M)

Storage

FTP; SFTP; Micro SD card (Support max. 256 G); NAS

Browser

IE: IE8/9/11
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

iOS; Android

Certification

Certification

CE-LVD: EN 62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5 mA 3V–5 VDC

Alarm Output

1 channel out: 300 mA 12 VDC

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 2.9 W (12 VDC); 5.0 W (PoE)
Max. (H.265+main stream/IR intensity+warm light on): 7.8 W (12 VDC) 9.6 W (PoE)

Environment

Operating Conditions

–40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH

Storage Conditions

–40 °C to +60 °C (–40 °F to +140 °F)

Protection Grade

IP67

Structure

Casing

Metal

Dimensions

110.9 mm × Φ122.0 mm (4.4" × Φ4.8")

Net Weight

745 g (163.1 lb)

Gross Weight

915 g (200.6 lb)


Videos






Downloads

DH-IPC-HDW3849H-AS-PV-S_Datasheet_AIG



Dahua

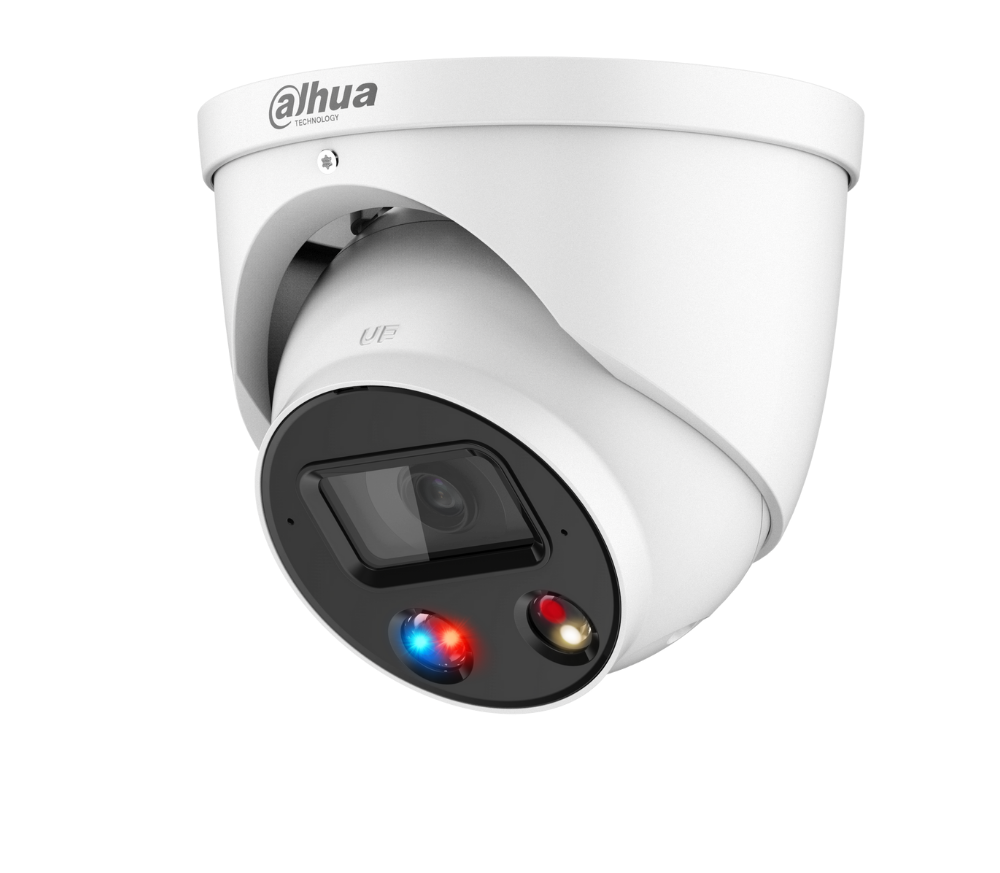

Dahua TIOC DH-IPC-HDW3849H-AS-PV 8MP Network Camera

SKU IPC-HDW3849H-AS-PV-AI/ANZ
$307.14
